2020/2021 NORCO FS AXS 120 (BLUETOOTH) EAGLE XX1 WITH NORCO FACTORY WARRANTY
description
All-day performance and breakneck speed on every trail.
The Revolver FS AXS 120 is the ultimate endurance race machine for ultimate lightweight, durability and handling on every high-speed adventure.
**REASONS IT'S RAD**
You’re in complete control of where you go and how fast you get there.
Optimal weight distribution helps navigate every part of a race course.
Dialed carbon frame optimizes pedaling efficiency.
Charge descents and leave the competition behind.
Throw-down on all types of terrain.
**Specs**
DOWNLOAD SUPPORT DOCS
Frame Assembly & Parts Reference
Warranty
Owner's Manual
Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
**Frameset**
FRAME Hi-Mod Carbon, 120mm, Ride Aligned™
FORK RockShox SID Ultimate, 120mm, 44mm Offset
REAR SHOCK RockShox SIDLuxe Select+, 190x45mm
**Drivetrain**
REAR SHIFTER SRAM Eagle AXS Controller

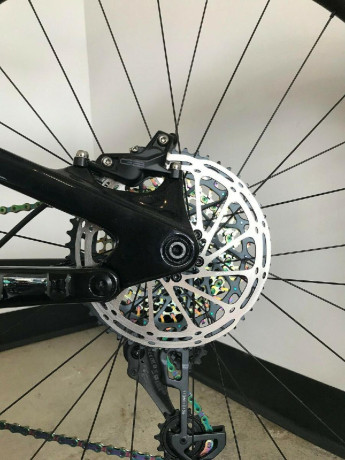

REAR DERAILLEUR SRAM XX1 Eagle AXS
CRANKSET SRAM XX1 Eagle B148 DUB, 32T, 170mm (S), 175mm (M, L, XL)
BOTTOM BRACKET SRAM BB DUB PF92
CASSETTE SRAM XG-1299 Eagle, 10-52T, Rainbow
CHAIN SRAM XX1 Rainbow
**Brakes**
FRONT BRAKE SRAM G2 RSC, Organic Pads
FRONT BRAKE ROTOR SRAM Centerline, 180mm
REAR BRAKE SRAM G2 RSC, Organic Pads
REAR BRAKE ROTOR SRAM Centerline, 160mm
BRAKE LEVERS SRAM G2 RSC
**Components**
HANDLEBAR Race Face Next R Carbon, 780mm, 20mm Rise
STEM Race Face Turbine R, 60mm Length, 35mm Clamp

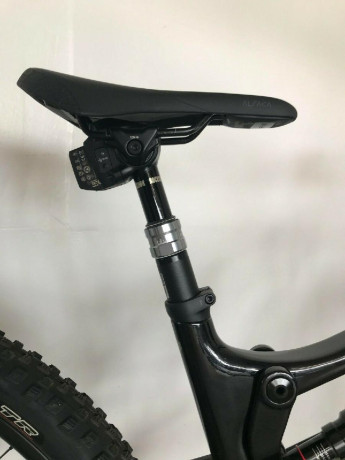

SEATPOST RockShox Reverb AXS, 125mm (S), 150mm (M, L, XL)
DROPPER LEVER RockShox AXS Reverb Controller
HEADSET FSA Internal Cartridge Bearing
SADDLE Fizik Alpaca Terra with Wingflex
GRIPS Ergon GA20 Lock-On
**Wheels**
FRONT HUB DT Swiss XRC 1501 Spline, 15x110mm Boost, 6 Bolt
REAR HUB DT Swiss XRC 1501 Spline, 12x148mm Boost, XD, 6 Bolt
RIMS DT Swiss XRC 1501 Spline Carbon 29" Wheelset
FRONT TIRE Maxxis Forekaster 2.35" 3C/TR/EXO
REAR TIRE Maxxis Forekaster 2.35" 3C/TR/EXO
SPOKES/NIPPLES DT Swiss
VALVES Stan's Universal 35mm Presta Valve Stem
SEALANT Stan's Tire Sealant - 200ml
RIM TAPE Comes with wheelset
**Geometry**
S M L XL
Wheel Size 29" 29" 29" 29"
Travel (mm front/mm rear)
120/120
Reach 418 448 478 509
Stack 587 587 597 607
HTA Head Tube Angle
67.4
OS Fork Offset
44
ST Seat Tube Length 425 440 485 510
STA Effective Seat Tube Angle 74.8 74.9 74.9 74.9
RC Rear Centre Length 420 423.3 426.7 430
BB Bottom Bracket Drop
32
BBH Bottom Bracket Height
341
HTT Horizontal Top Tube 577 607 640 672
WB Wheelbase 1117 1150 1188 1225
SOH Standover 709 716 717 726
HT Head Tube Length 90 90 100 110
Trail
100
Recommended Seatp
All-day performance and breakneck speed on every trail.
The Revolver FS AXS 120 is the ultimate endurance race machine for ultimate lightweight, durability and handling on every high-speed adventure.
**REASONS IT'S RAD**
You’re in complete control of where you go and how fast you get there.
Optimal weight distribution helps navigate every part of a race course.
Dialed carbon frame optimizes pedaling efficiency.
Charge descents and leave the competition behind.
Throw-down on all types of terrain.
**Specs**
DOWNLOAD SUPPORT DOCS
Frame Assembly & Parts Reference
Warranty
Owner's Manual
Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
**Frameset**
FRAME Hi-Mod Carbon, 120mm, Ride Aligned™
FORK RockShox SID Ultimate, 120mm, 44mm Offset
REAR SHOCK RockShox SIDLuxe Select+, 190x45mm
**Drivetrain**
REAR SHIFTER SRAM Eagle AXS Controller
REAR DERAILLEUR SRAM XX1 Eagle AXS
CRANKSET SRAM XX1 Eagle B148 DUB, 32T, 170mm (S), 175mm (M, L, XL)
BOTTOM BRACKET SRAM BB DUB PF92
CASSETTE SRAM XG-1299 Eagle, 10-52T, Rainbow
CHAIN SRAM XX1 Rainbow
**Brakes**
FRONT BRAKE SRAM G2 RSC, Organic Pads
FRONT BRAKE ROTOR SRAM Centerline, 180mm
REAR BRAKE SRAM G2 RSC, Organic Pads
REAR BRAKE ROTOR SRAM Centerline, 160mm
BRAKE LEVERS SRAM G2 RSC
**Components**
HANDLEBAR Race Face Next R Carbon, 780mm, 20mm Rise
STEM Race Face Turbine R, 60mm Length, 35mm Clamp
SEATPOST RockShox Reverb AXS, 125mm (S), 150mm (M, L, XL)
DROPPER LEVER RockShox AXS Reverb Controller
HEADSET FSA Internal Cartridge Bearing
SADDLE Fizik Alpaca Terra with Wingflex
GRIPS Ergon GA20 Lock-On
**Wheels**
FRONT HUB DT Swiss XRC 1501 Spline, 15x110mm Boost, 6 Bolt
REAR HUB DT Swiss XRC 1501 Spline, 12x148mm Boost, XD, 6 Bolt
RIMS DT Swiss XRC 1501 Spline Carbon 29" Wheelset
FRONT TIRE Maxxis Forekaster 2.35" 3C/TR/EXO
REAR TIRE Maxxis Forekaster 2.35" 3C/TR/EXO
SPOKES/NIPPLES DT Swiss
VALVES Stan's Universal 35mm Presta Valve Stem
SEALANT Stan's Tire Sealant - 200ml
RIM TAPE Comes with wheelset
**Geometry**
S M L XL
Wheel Size 29" 29" 29" 29"
Travel (mm front/mm rear)
120/120
Reach 418 448 478 509
Stack 587 587 597 607
HTA Head Tube Angle
67.4
OS Fork Offset
44
ST Seat Tube Length 425 440 485 510
STA Effective Seat Tube Angle 74.8 74.9 74.9 74.9
RC Rear Centre Length 420 423.3 426.7 430
BB Bottom Bracket Drop
32
BBH Bottom Bracket Height
341
HTT Horizontal Top Tube 577 607 640 672
WB Wheelbase 1117 1150 1188 1225
SOH Standover 709 716 717 726
HT Head Tube Length 90 90 100 110
Trail
100
Recommended Seatpost Drop 125 150 170 170
Maximum Post Insertion 180 200 250 250
Stem Length
60
Crank Length
175
Tire Size
2.0" - 2.35"
Water Bottle Compatible
1 x 750ml
